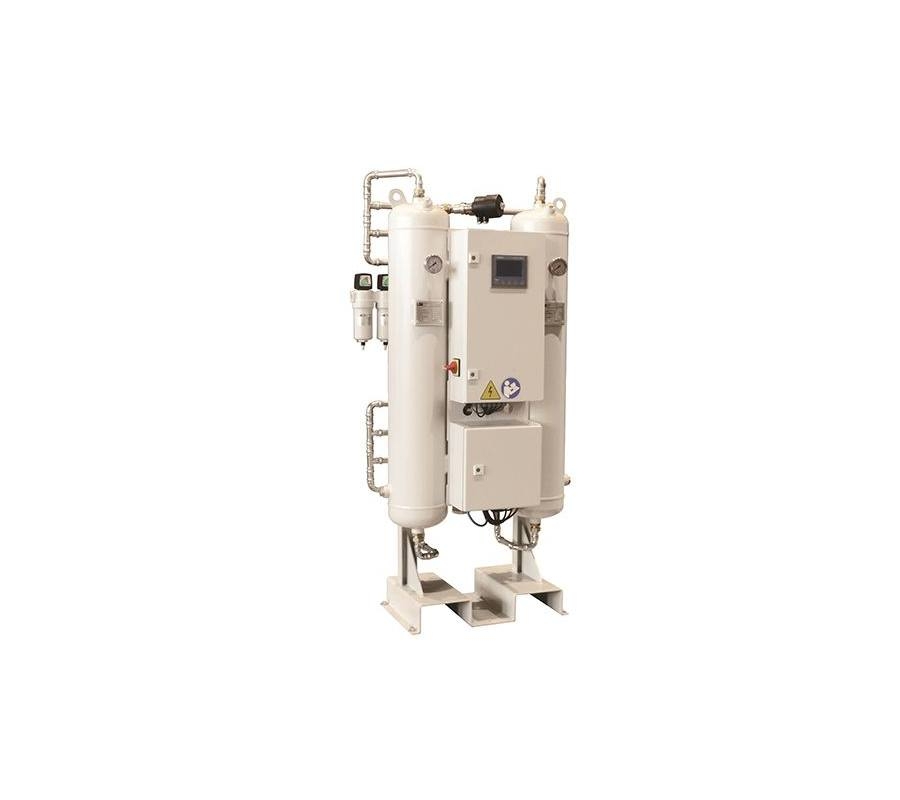

OXYGEN GENERATORS O-GEN

Γεννήτρια Οξυγόνου

O-GEN Oxygen Generators separate oxygen from the air and deliver it for use. The main applications that oxygen is needed are aquaculture, glass blowing, leaching, welding but also various medical uses.


airblock logo

Technical data

Operating pressure 10 bar

Temperature 5 - 35°C

Capacity 1,02 - 94,9 m3/h

Purity up to 95%

Specifications
MODELBAR InletBAR DischargePURITY
    90%93%95%
O-GEN 01O2 flow (m3/h)7.56.11.071.020.97
Feed air consumption (m3/h)   11.611.411.3
O-GEN 02O2 flow (m3/h)7.56.11.801.711.63
Feed air consumption (m3/h)   19.619.319.0
O-GEN 03O2 flow (m3/h)7.56.12.882.752.62
Feed air consumption (m3/h)   31.430.930.4
O-GEN 04O2 flow (m3/h)7.56.13.563.403.24
Feed air consumption (m3/h)   38.838.237.6
O-GEN 05O2 flow (m3/h)7.56.15.074.844.61
Feed air consumption (m3/h)   55.254.453.6
O-GEN 06O2 flow (m3/h)7.56.16.506.215.92
Feed air consumption (m3/h)   70.969.868.7
O-GEN 08O2 flow (m3/h)7.56.18.117.747.38
Feed air consumption (m3/h)   88.487.185.7
O-GEN 10O2 flow (m3/h)7.56.110.09.559.10
Feed air consumption (m3/h)   109.0107.4105.8

See in detail all Oxygen Generators O-GEN
