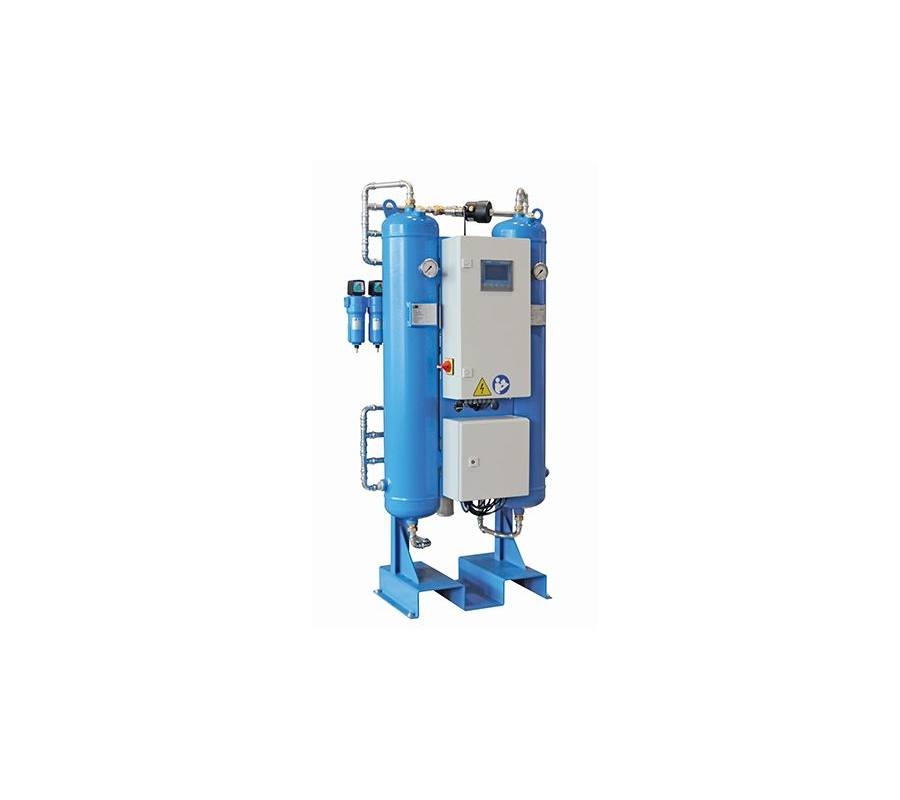

NITROGEN GENERATORS N-GEN
The nitrogen generators N-GEN, remove the nitrogen from the air and channel it for industrial use. Nitrogen is an inert gas that is mainly used in applications where the existence of oxygen is not desirable. Thus, the quality of the food, the prolongation of the product's life, the avoidance of crushing of packaged products, the prevention of oxidation of food and beverages and the creation of an explosion-proof atmosphere in high risk environments are ensured.
Caracteristics
Operating pressure 6-10 bar
Operating temperature range 5 to 50 °C
Flow 3-442 m3/h
Purity up to 99,999%
Technical data
Residual Oxygen % | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
3 | 2 | 1 | 0.5 | 0.1 | 0.01 | 0.001 | ||||
Residual Nitrogen % | ||||||||||
96 | 96.97 | 97.87 | 98.17 | 98.47 | - | -[1] | ||||
Residual Argon % | ||||||||||
1 | 1.03 | 1.13 | 1.33 | 1.43 | - | - | ||||
Total inert gas purity % | ||||||||||
97 | 98 | 99 | 99.5 | 99.9 | 99.99 | 99.999 | ||||
MODEL | Inlet pressure (bar) | Discharge pressure (bar) | ||||||||
N-GEN 05 | Ν2 flow (m3/h) | 7.5 | 6.2 | 9.0 | 7.4 | 6.2 | 5.2 | 3.4 | 1.7 | 1.1 |
Feed air consumption (m3/h) | 23.2 | 21.0 | 19.7 | 18.0 | 14.5 | 10.5 | 9.5 | |||
N-GEN 10 | Ν2 flow (m3/h) | 7.5 | 6.2 | 15.2 | 12.4 | 10.5 | 8.7 | 5.8 | 2.9 | 1.8 |
Feed air consumption (m3/h) | 38.9 | 35.3 | 33.0 | 30.2 | 24.3 | 17.6 | 15.9 | |||
N-GEN 15 | Ν2 flow (m3/h) | 7.5 | 6.2 | 24.1 | 19.7 | 16.7 | 13.8 | 9.2 | 4.6 | 2.8 |
Feed air consumption (m3/h) | 61.8 | 56.1 | 52.5 | 48.0 | 38.6 | 28.0 | 25.3 | |||
N-GEN 20 | Ν2 flow (m3/h) | 7.5 | 6.2 | 30.2 | 24.6 | 20.9 | 17.3 | 11.5 | 5.7 | 3.5 |
Feed air consumption (m3/h) | 77.3 | 70.3 | 65.6 | 60.1 | 48.3 | 35.1 | 31.6 | |||
N-GEN 25 | Ν2 flow (m3/h) | 7.5 | 6.2 | 42.7 | 34.8 | 29.5 | 24.5 | 16.2 | 8.1 | 4.9 |
Feed air consumption (m3/h) | 109.4 | 99.4 | 92.8 | 85.0 | 68.4 | 49.6 | 44.7 | |||
N-GEN 35 | Ν2 flow (m3/h) | 7.5 | 6.2 | 67.4 | 55.0 | 46.6 | 38.6 | 25.6 | 12.8 | 7.9 |
Feed air consumption (m3/h) | 172.7 | 156.9 | 146.6 | 134.2 | 107.9 | 78.3 | 70.6 | |||
N-GEN 60 | Ν2 flow (m3/h) | 7.5 | 6.2 | 111.9 | 91.4 | 77.4 | 64.2 | 42.6 | 21.2 | 13.1 |
Feed air consumption (m3/h) | 286.9 | 260.6 | 243.5 | 223.0 | 179.3 | 130.1 | 117.3 |
